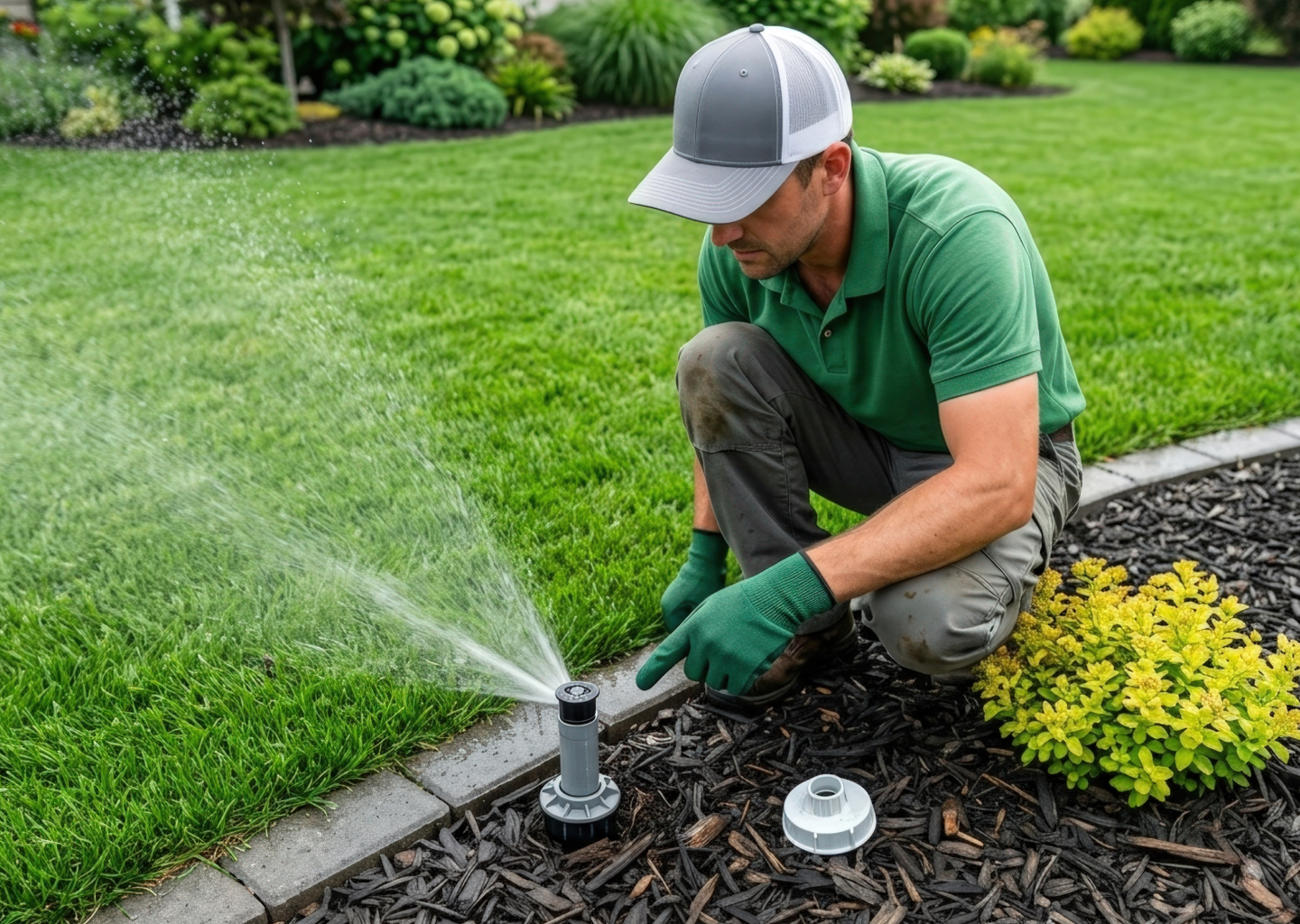

Troubleshooting Guide for Pros: Diagnosing Coverage Problems Fast (Without Guessing)
Every irrigation service call is a clock. The faster the crew can name the problem and know what to do, the more jobs run profitably. This is the irrigation troubleshooting guide most pros refine over years on the truck — written down in one place.
The diagnostic principle: symptom, not guess
The single biggest source of wasted time on a coverage call is leading with a suspected cause instead of the observed symptom. "Low pressure" is a hypothesis. "Brown stripe between heads 3 and 4" is data.
Crews that start with the visible symptom — what the grass actually looks like, in what pattern, after what change — diagnose faster, because each symptom narrows the field of likely causes by half or more. The decision grid below works because every row starts from a symptom the crew can see in two minutes of walking the yard.
The decision grid
| Symptom | First check | Next check | Likely cause |
|---|---|---|---|
| Single dry corner | Does the nearest head reach the corner? | Is the spray pattern aligned? | Coverage mapping or nozzle wear |
| Stripe of dry grass between heads | Pattern overlap | Pressure at each head | Pressure drop, head misalignment, or shifted overlap |
| Soggy spot in one area | Drainage / runoff | Schedule runtime vs. zone size | Overwatering to compensate for a different dry area |
| Driveway or fence consistently wet | Spray direction | Mapped zone boundary | Overspray from a shifted head |
| One zone won't run | Solenoid power | Wire continuity | Solenoid failure, wire break, or controller fault |
| All zones low pressure | Main water supply | Backflow preventer / pressure regulator | Supply pressure issue or regulator failure |
| Lawn declines slowly mid-season | Schedule vs. weather | Coverage map | Outdated schedule or coverage drift |
This grid handles most service calls. Anything outside it is usually a multi-symptom case that needs an on-site walk.
Three traps that waste callback time
Trap one: assuming the schedule. "It must be the controller" is the most common wrong first guess. Coverage problems present as schedule issues — patches looking dry, patches looking soggy — but the schedule almost never causes the underlying pattern. Confirm the coverage first; the schedule is usually compensating.
Trap two: assuming the controller. Wi-Fi connectivity, app issues, and firmware questions take 20 minutes to diagnose, and they're almost never the actual cause of a dry corner. Save the controller check for after the visible symptoms are explained.
Trap three: assuming the homeowner's description. A homeowner who says "the back yard is dying" might be describing one dry corner, one whole zone, or a fungal patch unrelated to irrigation. Walk the yard before reaching for tools.
How smart systems shortcut the diagnosis
Most of the decision grid above is faster on a smart system. Per-zone reporting in the app surfaces leaks, low-pressure events, missed cycles, and abnormal flow before the homeowner notices the lawn change. For a contractor running Irrigreen installs, the first step in any irrigation troubleshooting guide is to open the app and read the recent zone reports — most of the easy problems show up there first.
That doesn't replace the walk for harder cases. But it eliminates the "I don't know what changed" starting point that wastes the first ten minutes of most service calls.
FAQs
What's the fastest way to diagnose a single dry corner? Stand at the corner during a morning cycle and watch the nearest head's spray pattern. If the head reaches but the pattern is off, it's a nozzle or alignment issue. If the head doesn't reach, it's coverage mapping. Irrigreen's app shows the mapped boundary for the zone, which removes the guesswork on whether the head should be reaching the corner.
Why does the same dry spot come back every summer? Almost always because the original coverage plan was off and the schedule has been compensating with extra runtime everywhere else. Fixing the schedule doesn't fix the spot. Irrigreen's per-zone mapping is built to remove that compensation pattern.
When should I suspect a controller issue versus a coverage issue? Controller issues usually affect whole zones at a time — a zone not running, all zones running at the wrong time, no Wi-Fi. Coverage issues affect specific patches within a zone. If the symptom is patch-shaped, it's not the controller.
What's the most under-diagnosed cause of coverage problems? Shifted overlap. Heads that have settled, tilted, or had a nozzle replaced years ago still appear to be running but no longer overlap with their neighbors the way the original design assumed. Irrigreen's coverage mapping removes the overlap dependency, which makes this category of problem disappear after a system swap.
How much of a typical service call can be diagnosed before the truck rolls? On a traditional system, very little. On an Irrigreen install, most of the easy categories — leaks, missed cycles, pressure anomalies — surface in the app first. Truck rolls drop, and the ones that remain are more often actual install or hardware problems.
Does this irrigation troubleshooting guide work on traditional systems too? Yes. The decision grid is system-agnostic — it works for any in-ground system. Smart systems just compress the time at each step.
What about new-sod calls in the first 30 days? A different playbook. New sod needs frequent shallow watering for the first 10–14 days, and most "dying sod" calls in that window are schedule issues, not coverage. Confirm the new-sod schedule before checking anything else.
A practical next step
A short irrigation troubleshooting guide built into the workflow cuts callback time across the season. Book a call with the Irrigreen partner team to see how per-zone reporting and a printed decision grid fit into an existing service operation.
TL;DR
- Most coverage problems come from one of seven patterns. A symptom-first irrigation troubleshooting guide maps each pattern to its most likely root cause and shortcuts the diagnosis.
- The principle that saves the most time: name the symptom, not the suspected cause. "Brown stripe between heads" is diagnostic; "low pressure" is a guess.
- Three traps eat the most callback time: assuming the schedule, assuming the controller, and assuming the homeowner's description.
- Smart systems like Irrigreen surface most coverage issues remotely — leaks, pressure anomalies, missed cycles — before the crew arrives, which cuts truck rolls on the easiest problems.
- The decision grid in this irrigation troubleshooting guide handles 80% of common service calls; the rest usually need an on-site walk.
