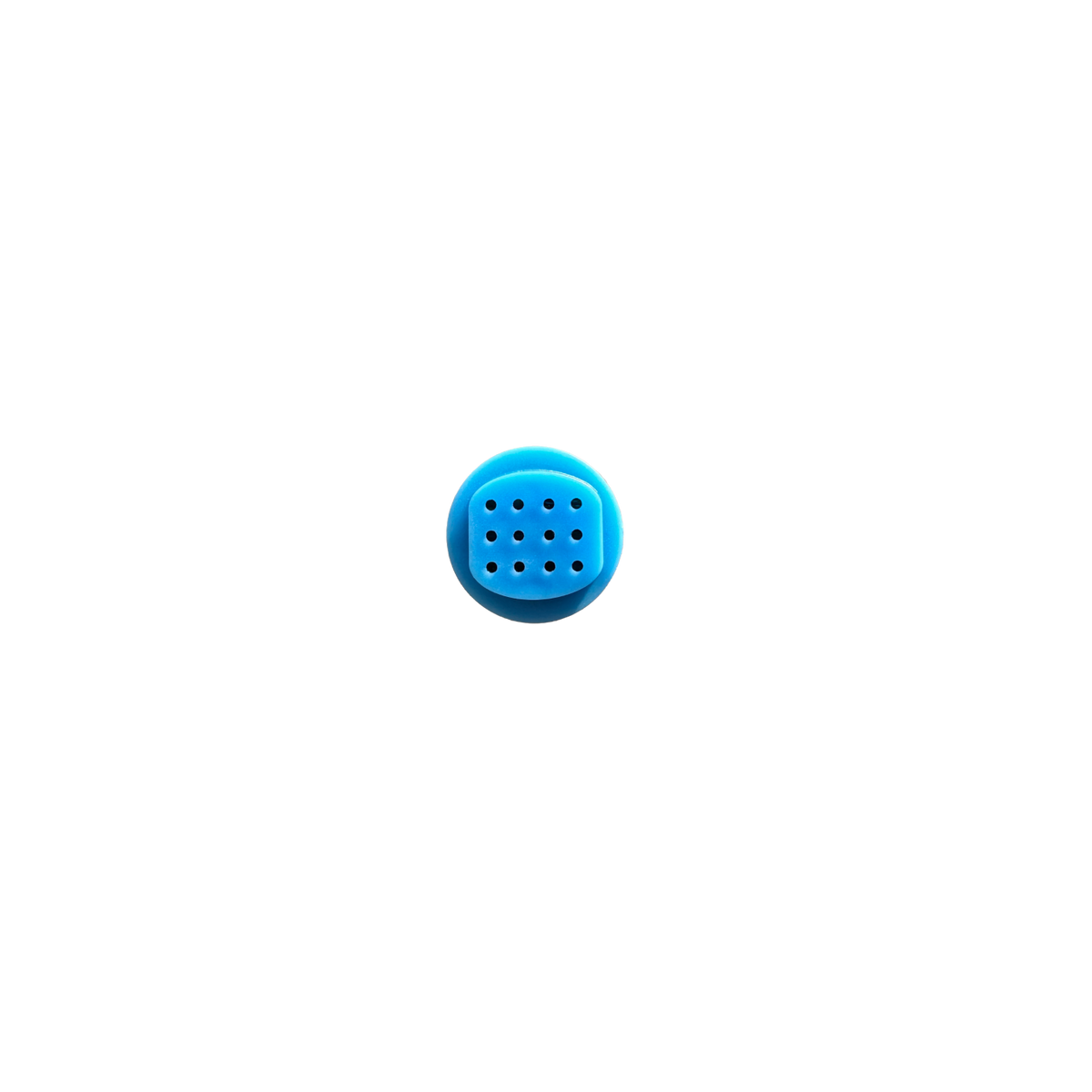

Irrigreen Short Range Insert

Precision watering for the tight spots.

Some parts of a yard are too small or too close for a full-range spray, like narrow side yards, parkway strips, and turf tucked between the house and the driveway. The Short Range Insert changes your Irrigreen head’s throw distance from 5–30 ft to 1–15 ft. Small and close-in areas get the same edge-to-edge precision as the rest of your lawn, without overspray onto sidewalks, siding, or patios.

Why you’ll love it

• Built for small zones. Water areas as close as 1 ft from the head, which is ideal for strips, side yards, and compact lawns that a full-range head can’t cover cleanly.
• Keeps water on the grass. Precise short-throw coverage means less runoff and wasted water, and dry hardscapes.
• Installs in minutes, no digging. Unscrew the nozzle cap, drop in the insert, replace the filter, and screw the nozzle back on.
• Fully smart. Turn on Short Range in the Irrigreen App, calibrate, and map your zone with the Edit Shape tool. Short Range heads show a unique badge in the app so you always know which is which.

What’s included
1× Short Range Insert (converts one sprinkler head)

Compatibility
Works with Irrigreen Sprinkler 3 heads with 16-port nozzles. Also works with Sprinkler 2 heads that have a 16-port nozzle.

Good to know
With the insert installed, the head’s maximum range is 15 ft. Use it on heads that only need to cover small or close-in areas, and keep standard heads for larger stretches of lawn.

How to install

1. Unscrew the green cap counterclockwise to remove the nozzle.

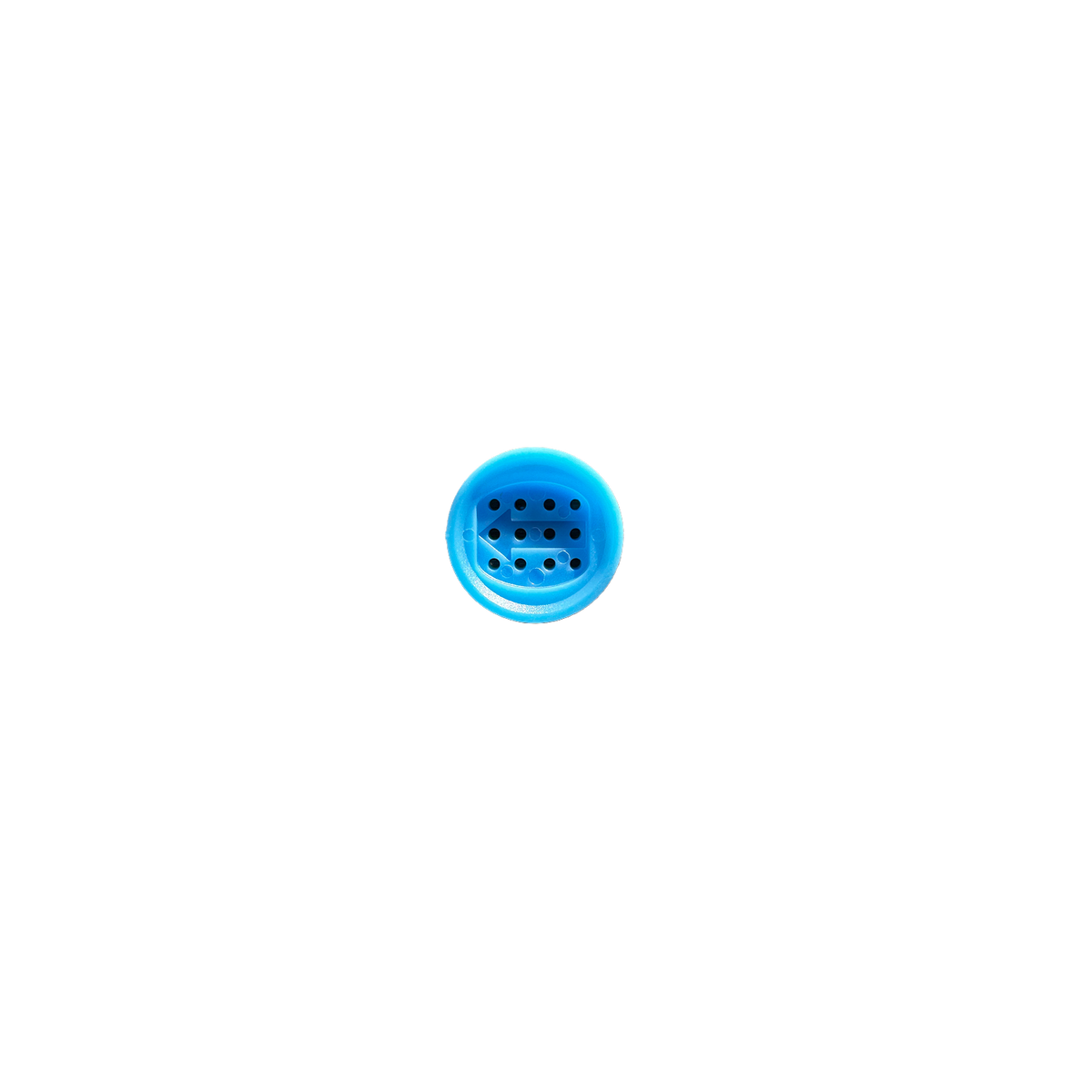

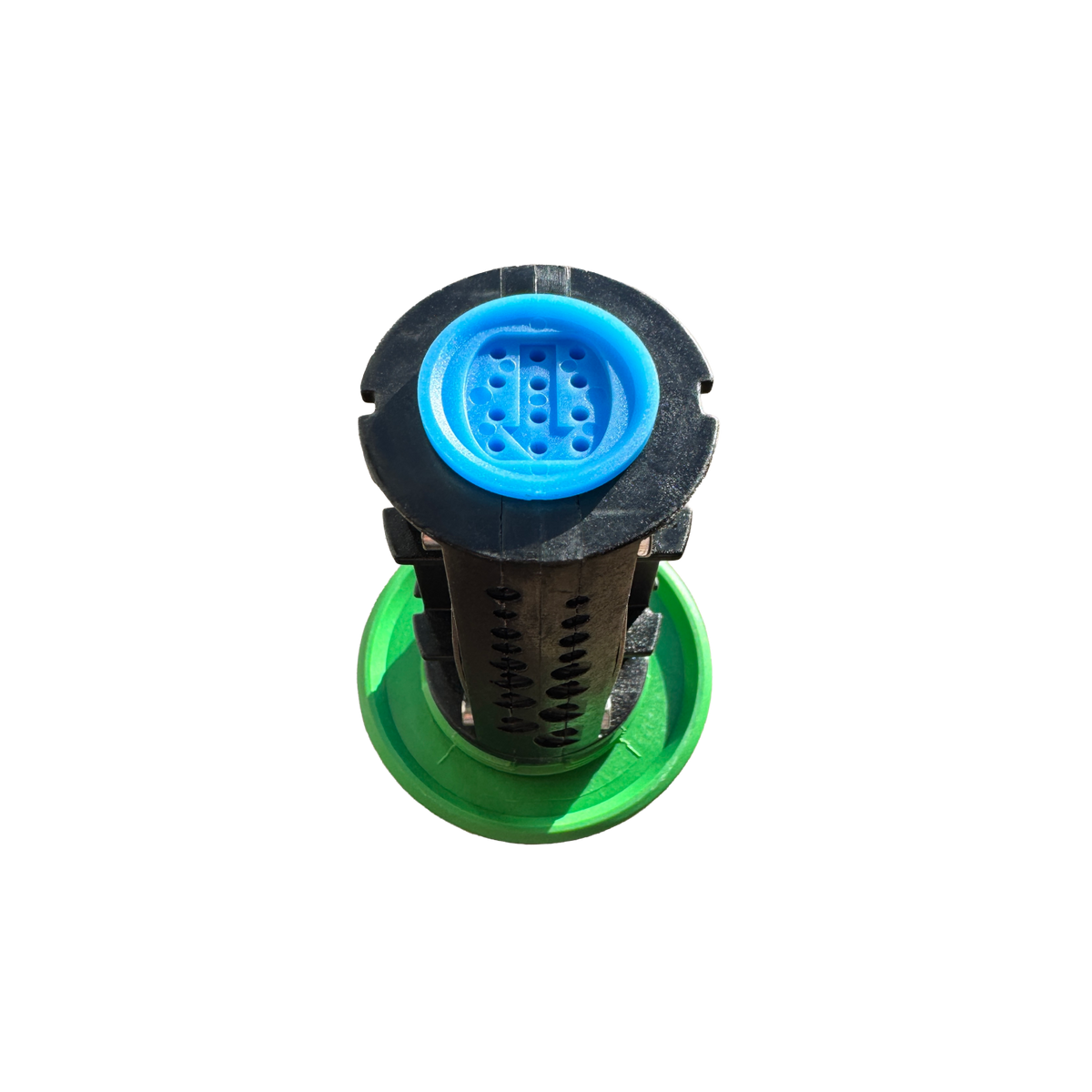

2. Insert the Short Range Insert into the bottom of the nozzle, with the stamped arrow pointing toward the spray ports.
3. Place the mesh filter back on top.
4. Twist the nozzle assembly firmly back onto the riser.
5. Toggle “Short Range” on in the Irrigreen App, calibrate the head, and map your new zone.

*Nozzle sold separately
